| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| MPO Connector: | Female / Male | Cable color: | 12 Color |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | OM1 OM2 OM3 OM4 |
| LC Connector Type: | PC UPC | Cable diameter: | 0.9mm |
| ハイライト: | UPC 0.9mm MPO MTP,LC UPC MPO MTP,0.9mm Ribbon MPO MTP |
||

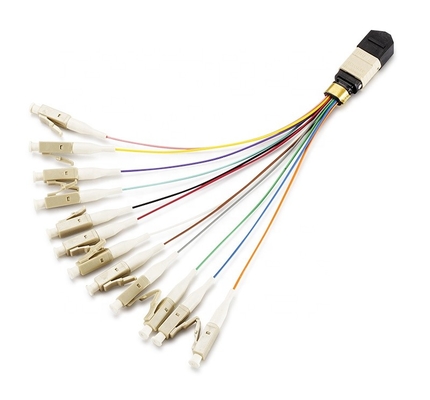

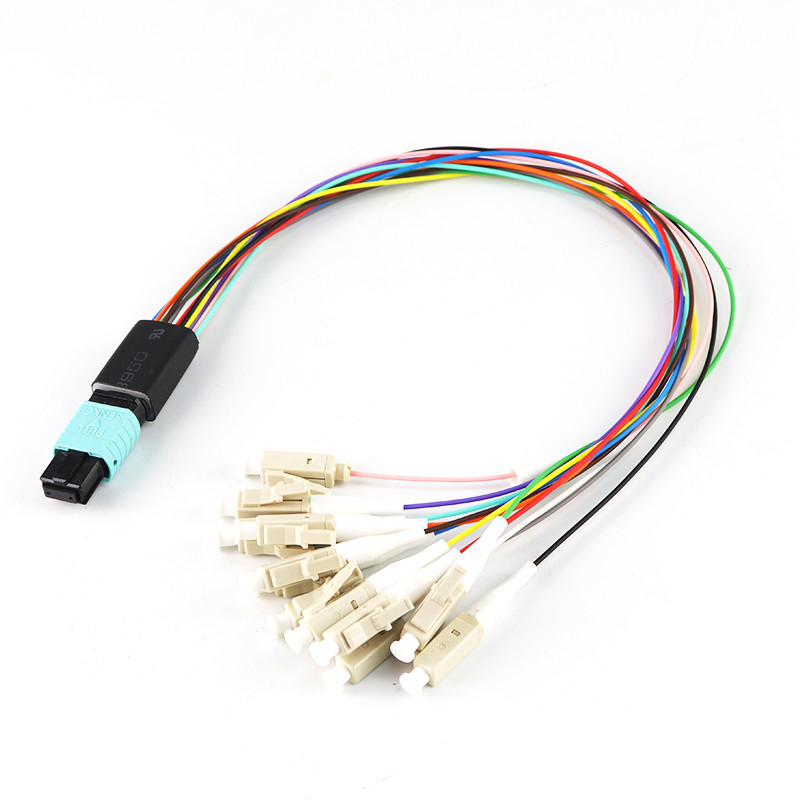

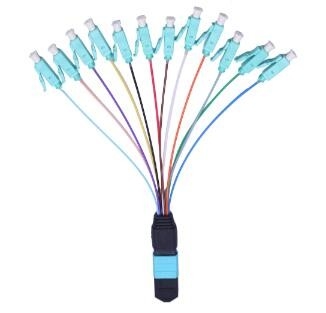

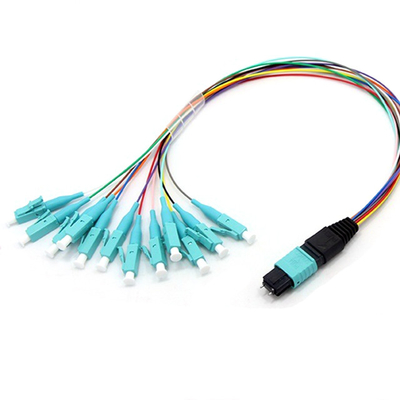

High Fiber Density Ribbon LC UPC 0.9mm MPO MTP
Mutilmode MPO-12 LC UPC 0.9mm cable MPO MTP Fan-out MM Patch Cord 12 Fiber corlor
Description:
MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex. There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers, 8 fibers, 12fibers, 24 fibers.
Features:
small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.
Applications:
Specification:
| Model | SM | MM | |
| MPO/MTP | |||
| Connector Fiber Count | 8,12,24,48 Core | ||
| Polish | APC | UPC | |
| Insertion Loss | Standard | ≤0.70dB | ≤0.50dB |
| Elite Low Loss | ≤0.35dB | ≤0.30dB | |
| Return Loss | PC≥50dB,APC≥60dB | ≥30dB | |
| Durability(500 Matings) | ≤0.2dB | ||
| Test Wavelength | 1310/1550nm | 850/1300nm | |
MPO to LC breakout cable allows the redistribution of various optical fibers to individual devices without additional networking equipment.
Our MPO-LC breakout cables reduce the overall cost and setup time for complex high density networking environments.
With additional protective jacketing or fire-resistant materials, this line of fiber optic cables simplifies short range data transmission even in harsh working environments.
MPO-LC breakout cable assemblies are most often used to reduce the amount of additional networking hardware within short distances. Their ability to redistribute multiple fibers from a single source to various devices allows for one cable assembly to eliminate the necessity for expensive networking equipment therefore reducing cost, setup time and complexity of fiber networks.
Order Information
| For example:MPO-male/PC/R--LC/PC/φ0.9-SM/12F-2/0.5-Type B | ||
| Connector | 1 | MPO-female,MPO-male,LC,SC,FC |
| 2 | MPO-female,MPO-male,LC,SC,FC | |
| Endface | 3 | PC/APC |
| 4 | PC/APC | |
| Cable Type | 5 | φ0.9/φ2.0/φ3.0mm /R/D. |
| 6 | φ0.9/φ2.0/φ3.0mm /R/D. | |
| Fiber Mode | 7 | SM(G652D/G657A/G657B),MM(OM1~OM4) |
| Fiber Count | 8 | 4/8/12/24/32/48.... |
| Cable Length | 9 | 1/2/3m.... |
| Fan-out | 10 | 0.5/0.6/1.0m../S=No fan-out |
| Polarity | 11 | A/B/C/Customized |
| Remark: R=ribbon cable, D=distribution cable | ||
