| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| Connector type: | Female /Male | Fiber qty: | 8 /12 /24 core |
| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Cable color: | Yellow / Orange / Auqa / Purple /Violet |
| ハイライト: | Female Male MPO Loopback,SM MM MTP Loopback,0.3m 12 Core Loopback |
||

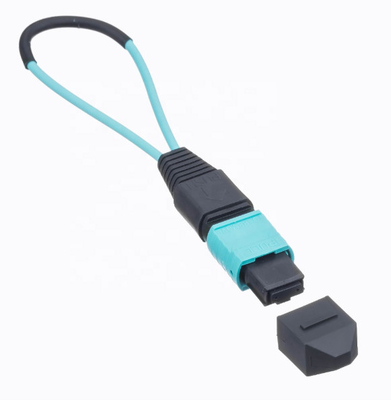

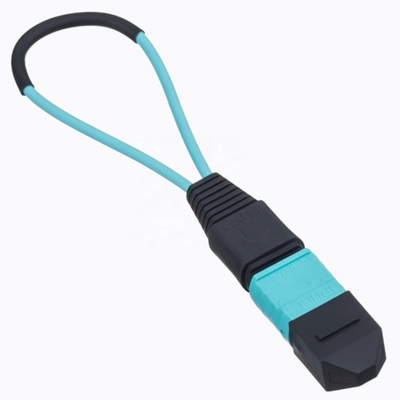

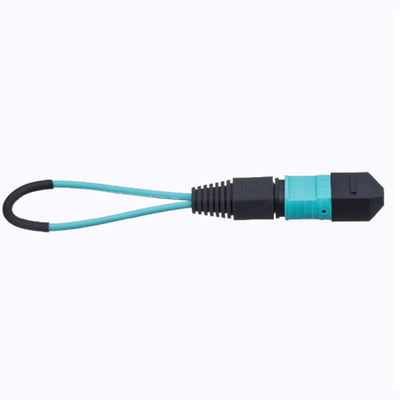

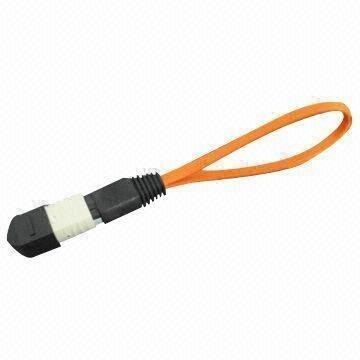

0.3m 12 Core SM MM Female Male MPO MTP Loopback
Fiber Optic MPO MTP Loopback 24 Cores 12 Core SM MM Loopback 0.3m Singlemode Mutilmode Cable
MPO Loopback is used to test the signal return in the system or the network system. Through the return signal, various potential abnormalities in the network link can be detected. This detection is widely used to provide an effective detection method to ensure the normal of the network link.Jiavan company can provide various forms of loop device, MPO has 0.9mm, 2.0mm fiber optic cable, shell type, and so on, but also according to customer requirements customized production
Features:
Plug connector lock structure type
High density wiring convenient and management system
Pin Assignmen
| Pin | to | Pin |
| 1 | to | 12 |
| 2 | to | 11 |
| 3 | to | 10 |
| 4 | to | 9 |
| 5 | to | 8 |
| 6 | to | 7 |
Application:
Connector Performance Specifications
| Model | SM | MM |
| Connector Fiber Count | 8, 12, 24 core | |
| Polish | PC, APC | |
| Housing Color |
Standard (green), Elite (Yellow) |
Standard(Beige) Elite(Auqa) |
| Insertion Loss Standard type | less than 0.7dB | Less than 0.5dB |
| Insertion loss Elite type | Less than 0.35dB | Less than 0.3dB |
| Return Loss | PC >50dB, APC>60dB | >30dB |
| Durability (500 matings) | less than 0.2dB | |
| Test Eavelength | 1310/1550nm | 850/1300nm |
Fiber Cable Perfomance Specifications
| Fiber Type | OS2, OM1, OM2, OM3, OM4 |
| Fiber Count | 8, 12, 24, 48, 72, 96, 144 cores |
| Cable Diameter | 3.0mm 5.5mm or customized |
| Jacket Color | Yeloow, Orange, Aqua, Purple |
| Jacket Material | OFNR, OFNP, PVC, LSZH |
| Tensile Strength | 500N |
| Operating Temperature | -20 to 70 ℃ |
| Storage Temperature | -40 to 75℃ |
packing information:
| Products Packing | |
| Inner packing | 1piece per plastic bag |
| Min order | 1pieces |
| 10 pieces weight | 0.2-3kg |
| Outer packing | Carton box |
