商品の詳細:
お支払配送条件:
|
| Length: | 1m or customized | 証明: | RoHS,ISO9001 |
|---|---|---|---|
| Cable color: | Orange,Aqua | Connector: | SC,FC,LC |
| Ferrule End-face: | UPC | Cable diameter: | 0.9mm/2.0mm/3.0mm |
| Return loss: | >50dB | Fiber Count:: | 4/6/8/12 Fibers |

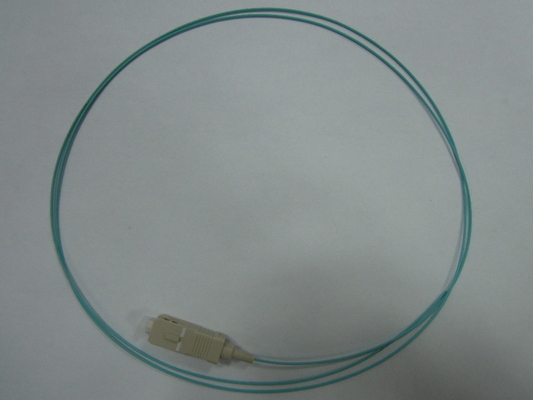

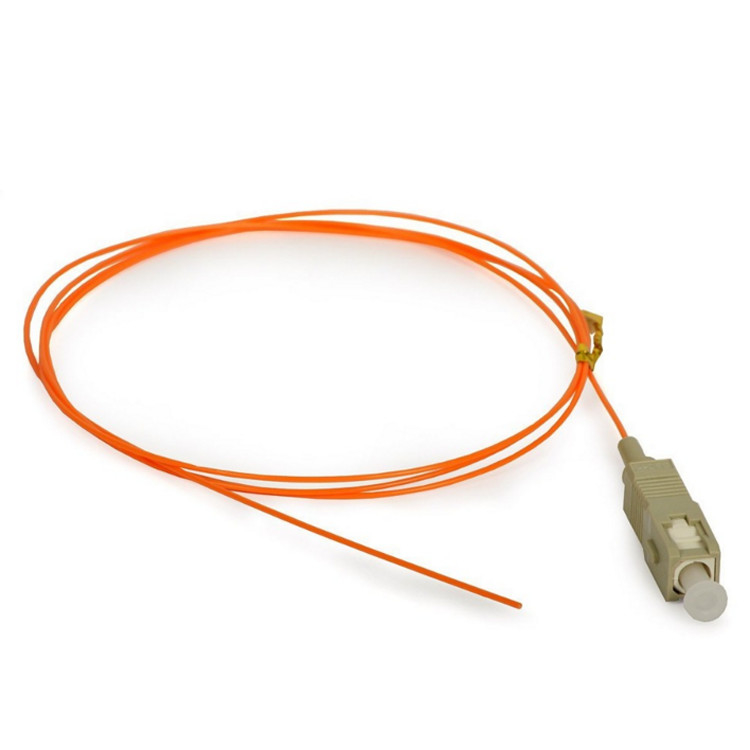

| ハイライト: | 0.9mm Pigtail Fiber Optic Cable,Simplex Multimode Pigtail,Om3 Multimode Pigtail |
||
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
