| Length: | 1m or customized | Cable color: | white,yellow,blue or customer request |
|---|---|---|---|
| Connector: | SC/FC/LC/ST/E2000 | Cable diameter: | 0.9mm/2.0mm/3.0mm |
| Insertion loss: | IL<0.2db | Jacket material: | OFNP,PVC.LSZH |

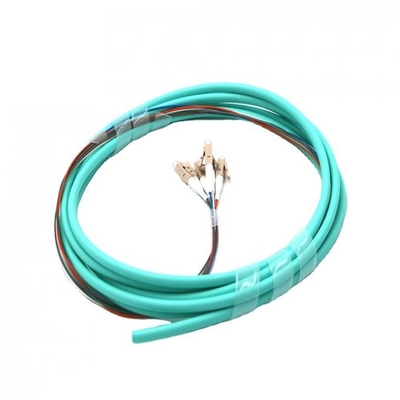

| ハイライト: | Fiber Optic Pigtail Single Mode,OM3 UPC LC Fiber Optic Pigtail,50/125um OM3 Pigtail |
||
Features:
· Many standard configurations in stock
· All standard fiber types available
· Many different cable designs available
· Many different connector options available
· 100% optical testing available
· 100% electronic testing available
· End face geometry (EFG) testing capabilities
· Design/engineering capabilities
| Parameter | Insertion loss(typical) | Return loss | Operating wavelength | Exchangeability | Vibration | Operating temperature | Storage temperature | |
| unit | dB | dB | nm | dB | dB | ℃ | ℃ | |
| LC | UPC | ≤0.3 | ≥50 | 1310, 1490,1550 | ≤0.2 | ≤0.2 | -40~75 | -45~85 |
| APC | ≤0.3 | ≥60 | ||||||
Order Information:
1. Connector type: SC, LC, ST, FC, E2000, MTRJ, MU, DIN, D4
2. Fiber Type: SM(9/125um), OM1(62.5/125um), OM2(50/125um), OM3(50/125um), OM4(50/125um)
3. Cable count: Simplex or Duplex, bundle pigtail, ribbon pigtail
4. Diameter of cable: 3.0mm(2.8mm), 2.0mm(1.8mm), 0.9mm
5. Cable length: 2Meter, 5Meter, 10Meter, customized length
6. Cable color: Yellow for SM, Orange for OM1 & OM2, Aqua for OM3, Violet for OM4, customized color
7. Outer jacket:PVC Riser cable, PVC Plenum cable, LSZH cable
