| Product Name: | XFP Transceiver | Usel: | FTTX |
|---|---|---|---|
| Distance: | 40KM | Wavelength: | TX1330nm/RX1270nm |
| 証明: | CE/ROHS/ISO9001 | Data transfer rate: | 10Gbps |
| ハイライト: | RX1270nm SFP Optical Transceiver,TX1330nm SFP,WDM SFP Optical Transceiver |
||
10G Bidi XFP 40km Single Fiber Module WDM TX1330nm/RX1270nm 10G Ethernet
Product Description
Features
Operating data rate up to10.3Gbps
Type: 1270nmDFB Tx/1330nmRx 1330nmDFB Tx/1270nmRx
Distance SMF up to 40km
Single 3. 3V Power supply and TTL Logic Interface
Simplex LC Connector Interface
Hot Pluggable
Operating Case Temperature
Standard: 0°C~+70°C
Compliant with MSA XFP Specification
DDM function
Applications:
10G Ethernet
10G Fiber Channel
SONET OC-192/SDH STM-64
Other Optical Link
BiDi(WDM) Transceivers
|
155M/622M BiDi SFP LC/SC |
155M BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional |
|
|
4/2/1G BIDI SFP LC/SC |
4/2/1G BiDi SFP LC/SC 3km/20km/40km/80km/120km with DDM optional |
|
|
10G SFP BiDi |
SFP+ BiDi 1270 20km |
SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
|
SFP+ BiDi 1330 20km |
SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
|
|
SFP+ BiDi 1270 40km |
SFP+ BiDi 40km Tx1270nm/Rx1330nm LC |
|
|
SFP+ BiDi 1330 40km |
SFP+ BiDi 20km Tx1330nm/Rx1270nm LC |
|
|
10G XFP BiDi |
XFP BiDi 1270 20km |
XFP BiDi 20km Tx1270nm/Rx1330nm LC |
|
XFP BiDi 1330 20km |
XFP BiDi 20km Tx1330nm/Rx1270nm LC |
|
|
XFP BiDi 1270 40km |
XFP BiDi 40km Tx1270nm/Rx1330nm LC |
|
|
XFP BiDi 1330 40km |
XFP BiDi 40km Tx1330nm/Rx1270nm LC |
|

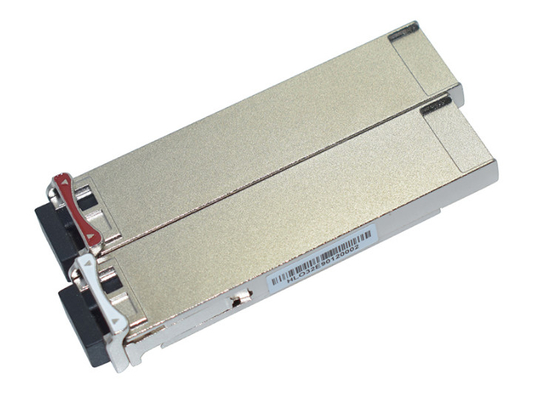

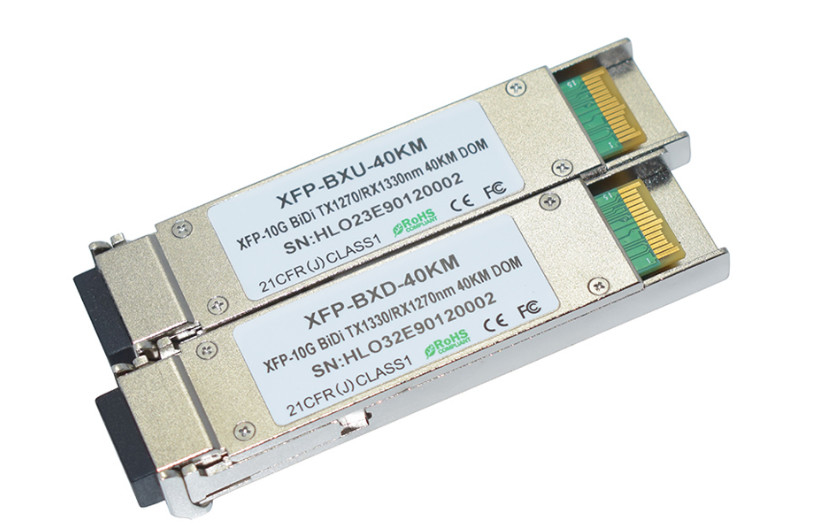

Photo show:
