120G AOC Active Optical Cable

120G AOC Active Optical Cable
120G AOC Active Optical Cable 120G AOC Active Optical Cable 120G AOC Active Optical Cable

大画像 :  120G AOC Active Optical Cable

商品の詳細:
Place of Origin: Shenzhen China
ブランド名: CY COM
証明: ISO9001:2015,ISO14001:2015,Rosh
Model Number: 120G CXP to 3 x 40G QSFP
お支払配送条件:
Minimum Order Quantity: 20pcs
価格: negotiable
Packaging Details: Plastic box and bag
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 50K/Month
詳細製品概要
Model Number: 120G CXP to 3 x 40G QSFP Connector Type: CXP to 3 QSFP+
Data rate: 120G Temperature:: 0 to 70°C (32 to 158°F)
Form Factor: QSFP+ Type: Fiber Optic Transceivers
ハイライト:

120G CXP to 3 x 40G QSFP

,

120G AOC Active Optical Cable

,

120G Active Optical Cable

Customized 120G CXP to 3 x 40G QSFP+ Breakout Active Optical Cable



Product Description
art Number 120G CXP 3 x 40G QSFP+ AOC Vendor Name  CY COM
Connector Type CXP to 3 QSFP+ Max Data Rate 120Gbps
Minimum Bend Radius 7.5mm Cable Length Customized
Jacket Material OFNP Temperature 0 to 70°C (32 to 158°F)


Features:

  • Full Duplex 4 Channel 850nm Parallel Active Optical Cable
  • Transmission data rate up to 10.3Gbit/s per channel
  • Reliable VCSEL and PIN photonic devices
  • Hot pluggable electrical interface
  • Differential AC-coupled high speed data interface
  • Available lengths (in meters): 1, 2, 3... 50...
  • Commercial temperature range: 0 to 70°C
  • Single 3.3V power supply
  • Low power consumption: less than 1.5 W per end
  • I2C standard management interface
  • Excellent high speed signal integrity
  • Complies with QSFP+ MSA high-density form factor
  • Compliant to industrial standard SFF-8436 QSFP+ active optical modules
  • RoHS-6 Compliant
Application
  • InfiniBand QDR (4 x 10G)
  • 40G Ethernet
  • Fibre Channel
  • PCI-Express, SAS/SATA, Fibre Channel compatible interconnect
  • Proprietary high speed, high density data transmission
  • Switch and router high speed backplane interconnect
  • High performance computing, server and data storage

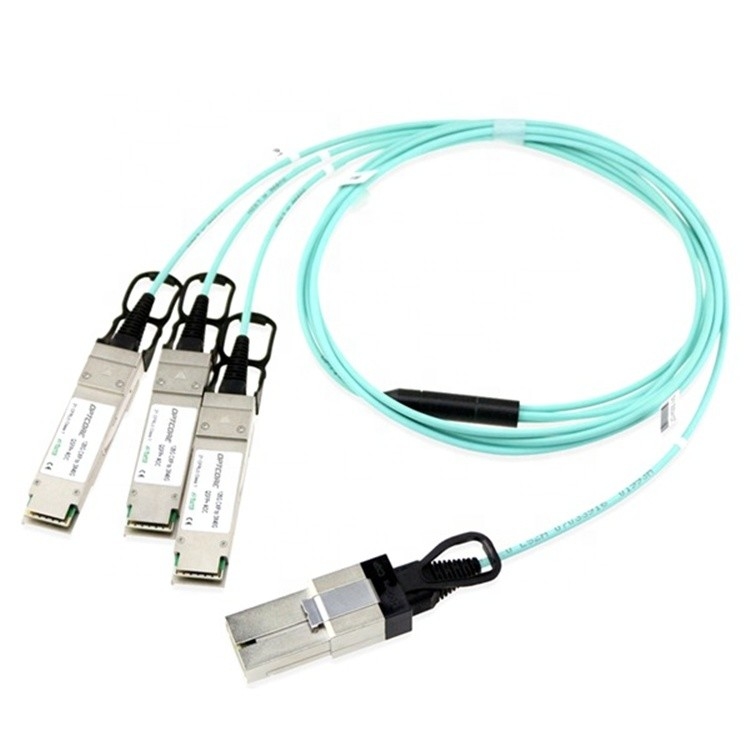

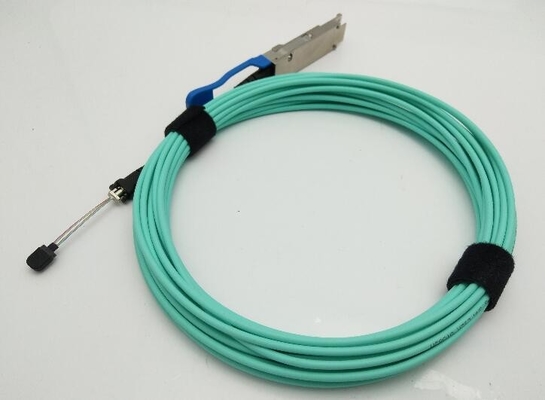

Product Pictures
 120G AOC Active Optical Cable 0
120G AOC Active Optical Cable 1
120G AOC Active Optical Cable 2120G AOC Active Optical Cable 3
