| Item: | LC-DX SC type Adapter | Color: | Blue |
|---|---|---|---|
| Structure: | Flange or Flangeless | Test: | 100% |
| Materials: | FBT+PC | Ferrule material: | Ceramic |
| Cap color: | White | Fiber type: | Single mode |
| ハイライト: | LC UPC fiber optic cable coupler,LC DX SC fiber optic coupler,LC DX SC fiber optical coupler |
||

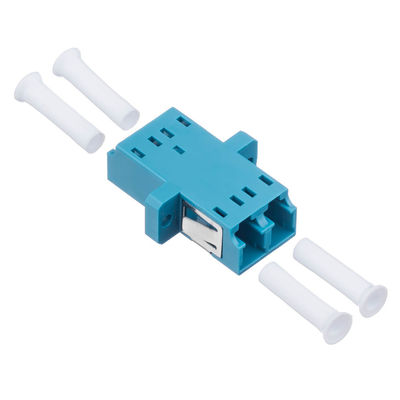

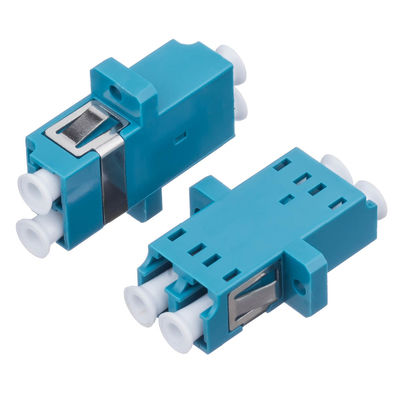

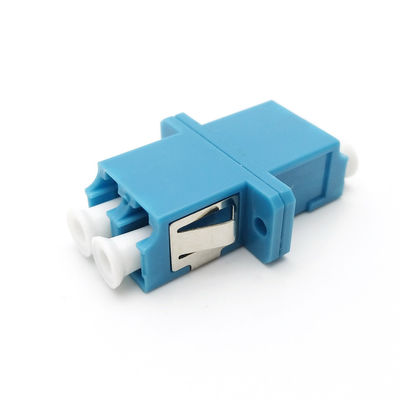

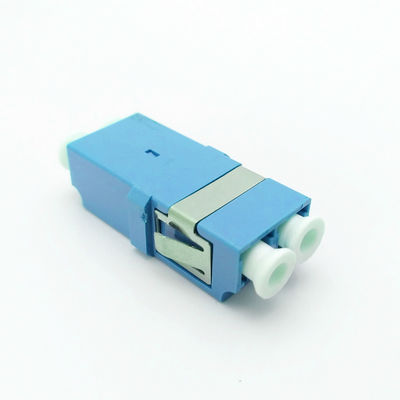

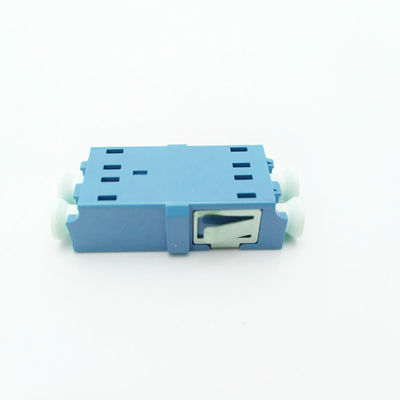

Plastic Singlemode Duplex LC UPC fiber optic cable coupler
Description:
LC Adapters were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.
Fiber Adapter (also known as flange, coupling) is a fiber optic connector for connection components, the product is very variety, including FC, SC, ST, LC, MTRJ, as well as carry out the transfer between each other such as: ST-SC, FC-ST, it's widely used in optical distribution frame (ODF), fiber-optic communications equipment, instrumentation, the feature is stable and reliable
Features:
Small size, large capacity
Compact design
High precision alignment
Choice of housing materials and sleeve materials
Dust caps protect against debris and contamination
Usually mounted in a distribution panel or wall box.
Color coded, allowing easy identification of the adapter type.
Available with single-fiber & multi-fiber patch cords and pigtails.
The adapters are available for all standard connector types in both SM and MM
Application:
Optical Fiber Communications,Video,LAN, CATV Systems
Optical Network Equipments,optical Test Equipments
Module Pigtails,Multi media,Premise
Active device termination installations
| Connector Type | LC,FC,SC,MU,ST,MTRJ,Hybrid | |
| Fiber Type | Singlemode | Multimode |
| Insertion Loss | ≤0.2dB | |
| Return Loss | PC≥45dB;UPC≥50dB;APC≥60dB | ≥30dB |
| Durability | ≤0.2dB,after 1000times | |
| Operation Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |

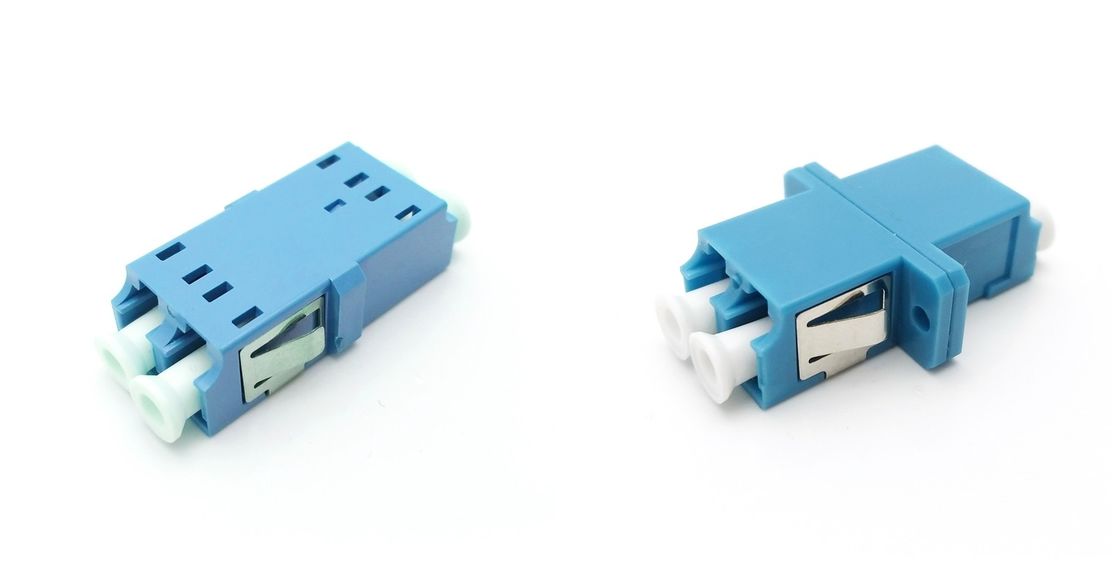

Pictures and Drawing(The Unit is mm):
