| Product name: | Fast Connector | Color: | Blue |
|---|---|---|---|
| Connector: | SC UPC | Length: | 55MM |
| Insertion cycle: | more than 1000 times | Application: | Telecom networks FTTX CATV |
| ハイライト: | LC UPC Quick Assembly Fast Connector,0.2dB Quick Assembly Fast Connector,0.2dB Fast Connector Assembly |
||

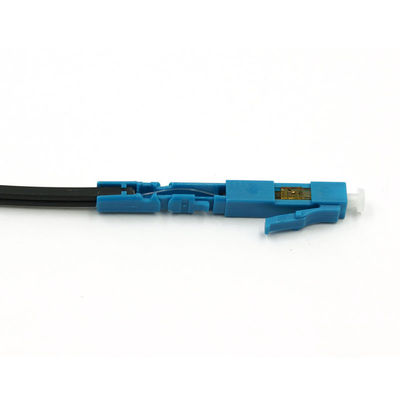

0.2dB FTTH Single Mode LC UPC Quick Assembly Fast Connector
FTTH Cable Field Connection Fiber Optic LC UPC Single Mode Quick Assembly Fast Connector
Description:
LC Fiber quick connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver.
The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove.. Also, transparent design of the side cover which allows visual inspection.
It could be applied to drop cable and indoor cable
Feature:
1). Low insertion loss
2). High return loss (low amounts of reflection at the interface)
3). Ease of installation
4). Low cost
5). Reliability
6). Low environmental sensitivity
7). Ease of use
Product length:50mm ≤L≤60mm
Optical Characteristics
|
Fast Connector Specification |
|||
|
Mode |
SM |
|
MM |
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
ypical ≤0.2dB Maximum ≤0.3dB |
≤0.25dB |
|
|
Return Loss |
≥50dB |
≥65dB |
≥35dB |
|
Interchangeability |
≤0.2dB |
||
|
Repeatability |
≤0.1dB |
||
|
Durability |
≤0.2dB (1000 times mating) |
||
|
Tensile Strengh |
> 10kg |
||
|
Temperature |
≤0.2dB (-40+85 sustain 100 hours) |
||
|
Humidity |
≤0.2dB (+25+65 93 R.H.100 hours) |
||
Application:
1). CATV
2). Active device termination
3). Telecommunication networks
4). Metro
5). Local Area Networks (LANs)
6). Data processing networks
7). Test equipment
8). Premise installation
9). Wide Area Networks(WANs)

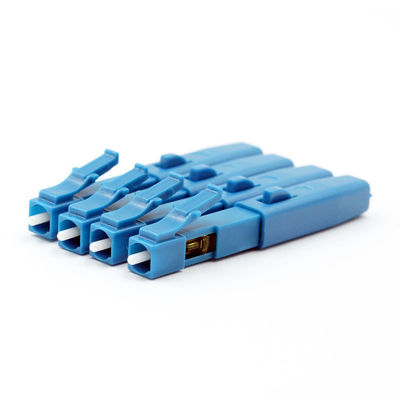

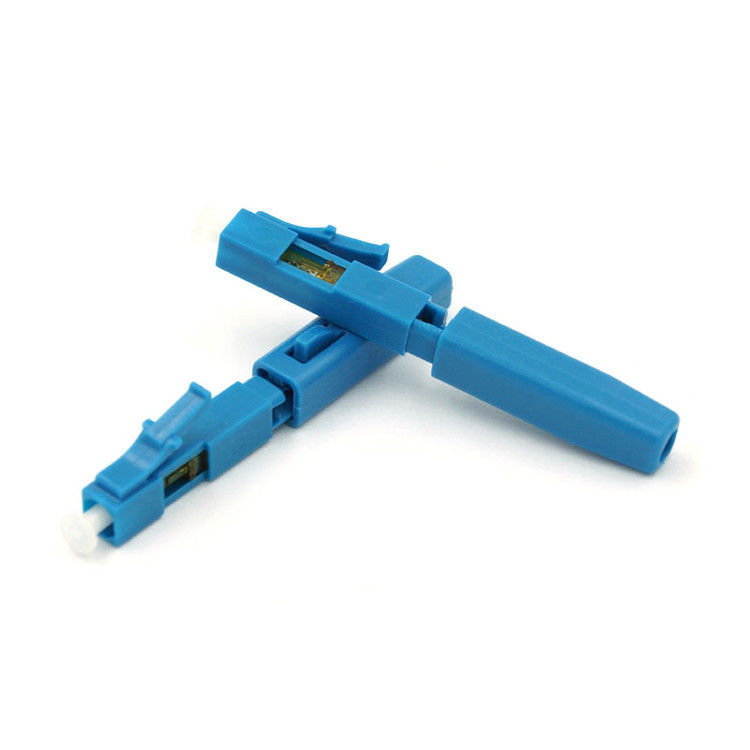

Product Picture
Operation
Factory picture
