| Material: | Zinc Alloy | Attenuator value: | 1-30dB customized |
|---|---|---|---|
| Cap color: | White/Green/Black | Type: | Female to Male |
| Return Loss: | PC:≥50 UPC: ≥55 APC: ≥60 | Storage Temperature: | -40℃~+ 85℃ |
| ハイライト: | optical variable attenuator,SC APC Metal attenuator,Zinc Alloy attenuator |
||

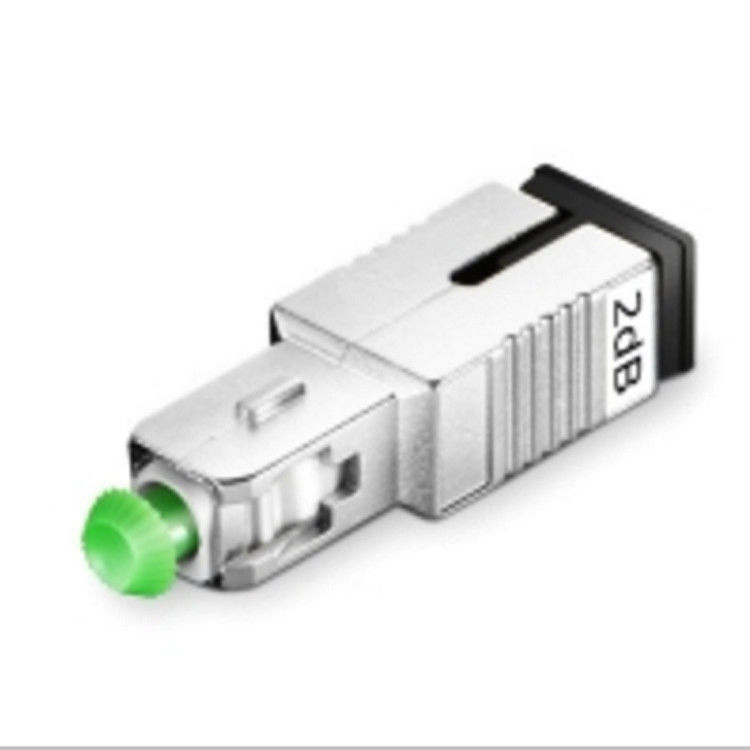

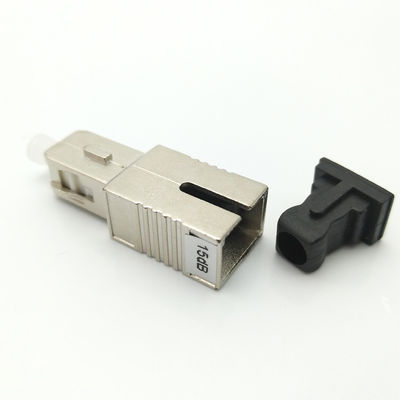

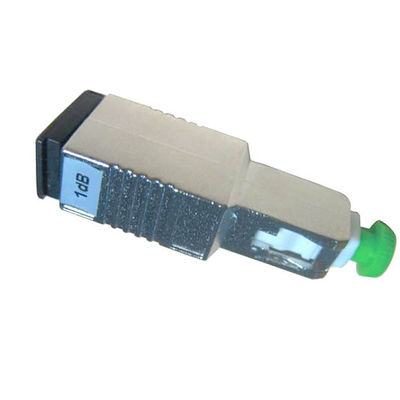

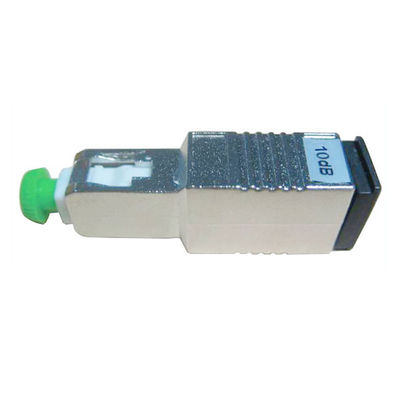

SC APC Female To Male Zinc Alloy Optical Variable Attenuator
Introduction:
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal.
It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Features:
Low back reflection and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
Metal housing material
Application:
Fiber optical telecommunication system
Fiber optical CATV
Fiber optical sensor
Testing equipment
Specification:
| Item | Unit | Parameter |
| Operating Wavelength | nm | SM:1310/1550nm MM: 850 /1300nm |
| Attenuation Range | dB | 1-10dB(1dB step), 15, 20, 25, 30dB |
| Return Loss | dB | PC:≥50 UPC: ≥55 APC: ≥60 |
| Attenuation Tolerance | dB | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Working Temperature | ℃ | -25℃~+75℃ |
| Storage Temperature | ℃ | -40℃~+ 85℃ |
4. Ordering information:
