| Model No.: | Dwdm mux demux | Wavelength: | C- or L-band ITU channels 186.6 to 196.1 THz |
|---|---|---|---|
| Connector: | FC SC LC ST | Operating temperature range: | -5 ~ 70 ℃ |
| Application: | FTTx Solutions | Channel Number: | (2~18channel optional) |
| Polarization dependent loss: | ent loss: ≤0.2dB | Return loss: | ≥45dB |
| ハイライト: | 8 Channels WDM CWDM DWDM,FTTH WDM CWDM DWDM,FTTX CWDM |
||

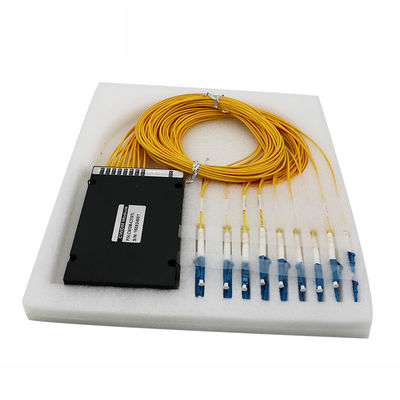

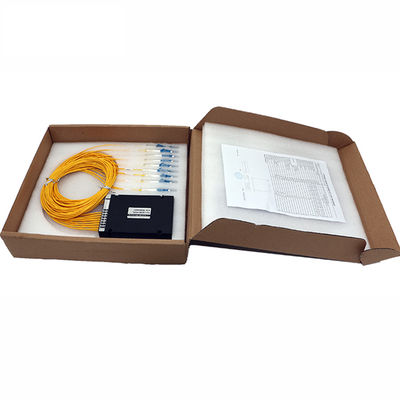

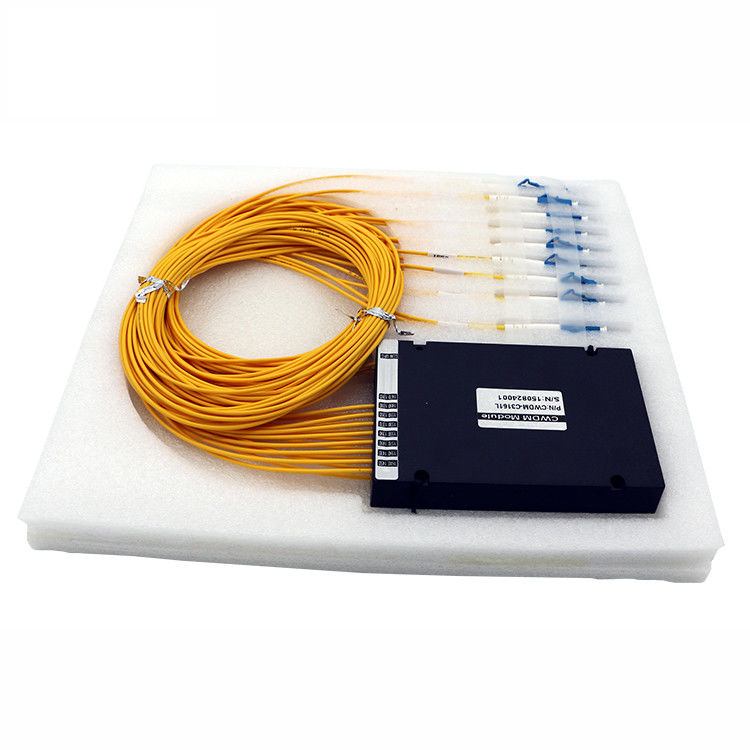

FTTH FTTB FTTX Network 8 Channels WDM CWDM DWDM
FTTH FTTB FTTX Network fiber optic Dense wavelength division multiplexer wdm 8 channels cwdm mux demux
Dense wavelength division multiplexer(DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, within ITU wavelengths to achieve uplink and downlink. It provides ITU channel center wavelength, low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability and so on. In a telecommunications network system, it can be used for uplink or downlink optical signal.
Applications
Features&Advantage:
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1620nm
Wide Operating Temperature:
From -40°C to 85°C
High Reliability and Stability
Specification:
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
