| Model No.: | CCWDM/DWDM 4, 8,16CH | Wavelength:: | 1270nm, 1471nm, 1491nm 1611nm or others |
|---|---|---|---|
| Input/Output connector:: | FC, SC, LC optional | Product Name:: | Mini CWDM |
| Structure:: | Mux or Demux | Package dimension:: | 44*28*7mm |
| Channel Spacing:: | 20nm | Pigtail Diameter:: | 0.9mm |
| ハイライト: | Mini WDM CWDM DWDM,Mux Demux CWDM,16 Channel Compact CWDM |
||

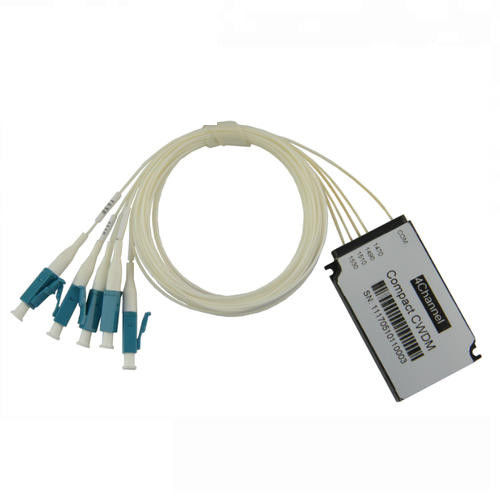

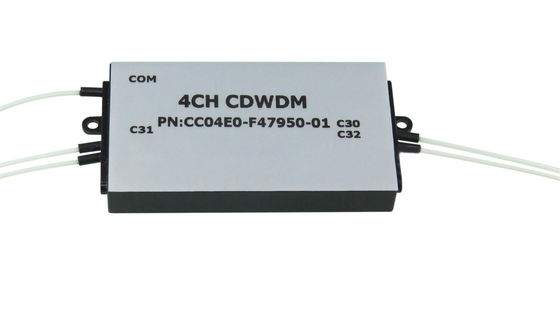

16 Channel Mux Demux Compact Mini WDM CWDM DWDM
4/8/16 Channel CCWDM Module Mux/Demux Compact CWDM 8CH Mini CWDM
Description
CY COM offers a Mini CWDM (compact CWDM) module that provides bandwidth capacity expansion for future network growth in one of the industry’s smallest packages. The compact CWDM modules are based on free space optics technology. It is available in 4-or up to18- channel configurations. It have lower overall insertion loss and better uniformity across the channels. Its compact size and unique carrier tray set it apart, making it easier to deploy in a variety of field situations.
Features
1. Low Insertion Loss
2. Wide Pass Band
3. High Channel Isolation
4. High Stability and Reliability
Applications
WDM Network
Add/Drop System
CATV Fiberoptic System
Metro/Access Network
Fiber Optical Amplifier
Specification:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
