| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Jacket Material: | PE |
|---|---|---|---|
| Fiber quality: | 2 / 4 / 6 / 8 / 10 / 12 | Jacket Color: | Black/Customized |

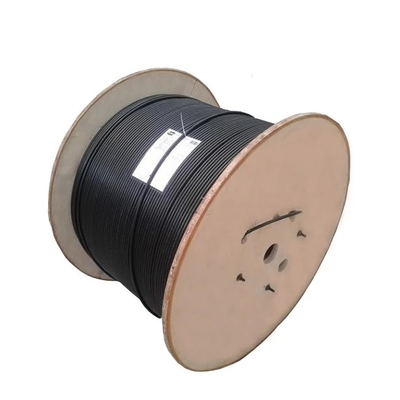

| Cable diameter: | 7.6x14.5mm±0.3 mm for 12core | Package: | Wooden reel ,3KM/reel |
| 証明: | ISO9001/CE/ROHS | Application: | Outdoor,Aerial |
| ハイライト: | GYXTC8S Optical Fiber Cables,GYXTC8S,Self Supporting OS1 Fiber Cables |
||
OS1 OS2 Self Supporting GYXTC8S Optical Fiber Cables

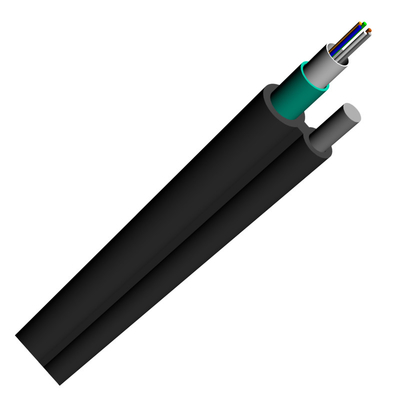

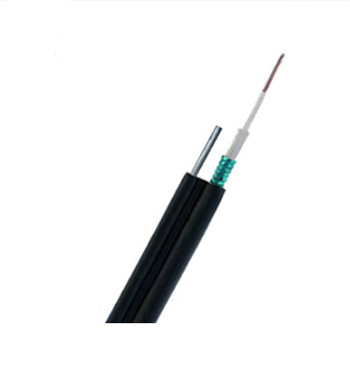

Figure 8-Like self-supporting Center Tube Optial Cable GYXTC8S Fiber optic Cable PE jacket
Description

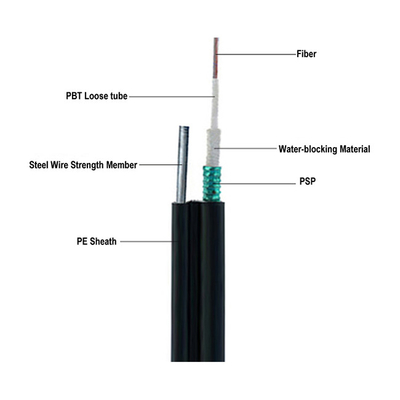

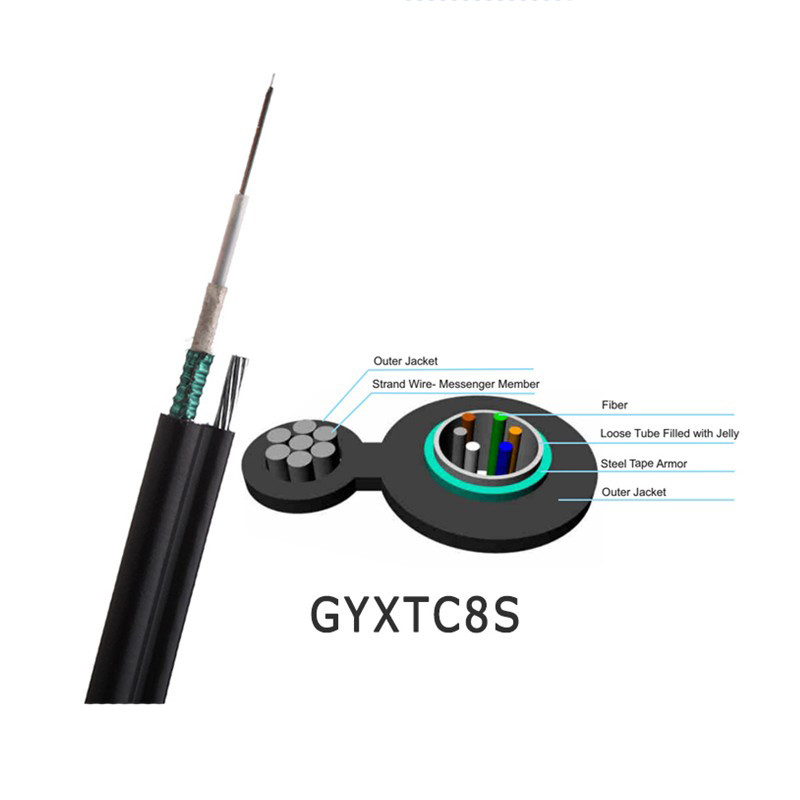

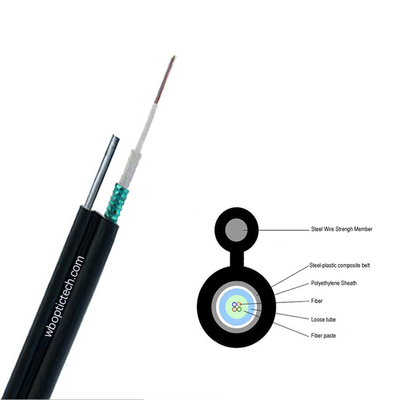

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance With small cable diameter, light cable weight, self-supporting, Low dispersion and attenuation
Features
* High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
* Good mechanical and temperature performance
* High strength loose tube that is hydrolysis resistant
* Special tube filling compound ensure a critical protection of fiber
* The following measures are taken to ensure the cable watertight:
* Steel wire used as the central strength member
* Loose tube filling compound
* 100% cable core filling
* steel tape moisture barrier
Application
Backbones and Access.
Installed aerially.
Technical Data
