| Fiber type: | OS1 / OS2 / OM1 / OM2 / OM3 / OM4 | Jacket Material: | PE |
|---|---|---|---|
| Fiber quality: | 2 / 4 / 6 / 8 / 10 / 12 | Jacket Color: | Black/Customized |

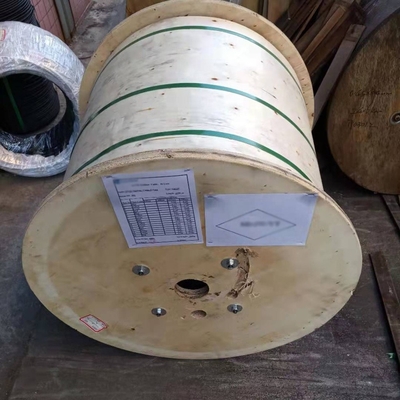

| Cable diameter: | 7.2±0.3 mm for 12core | Package: | Wooden reel ,3KM/reel |
| 証明: | ISO9001/CE/ROHS | Application: | FTTH |
| ハイライト: | GYFXTY Optical Fiber Cord,G652D Optical Fiber Cord,UVproof optical fiber cord |
||
UVproof Single Mode G652D GYFXTY Optical Fiber Cord
FTTH FIBER TO THE HOME CABLING SYSTEM GYFXTY Fiber optic Cable PE jacket
Description

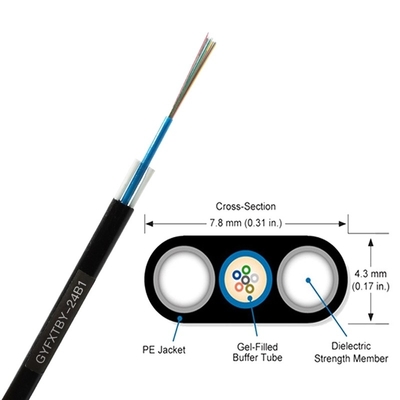

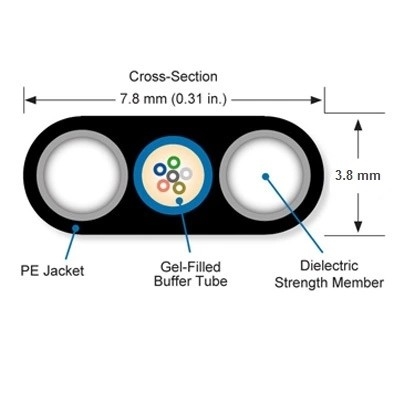

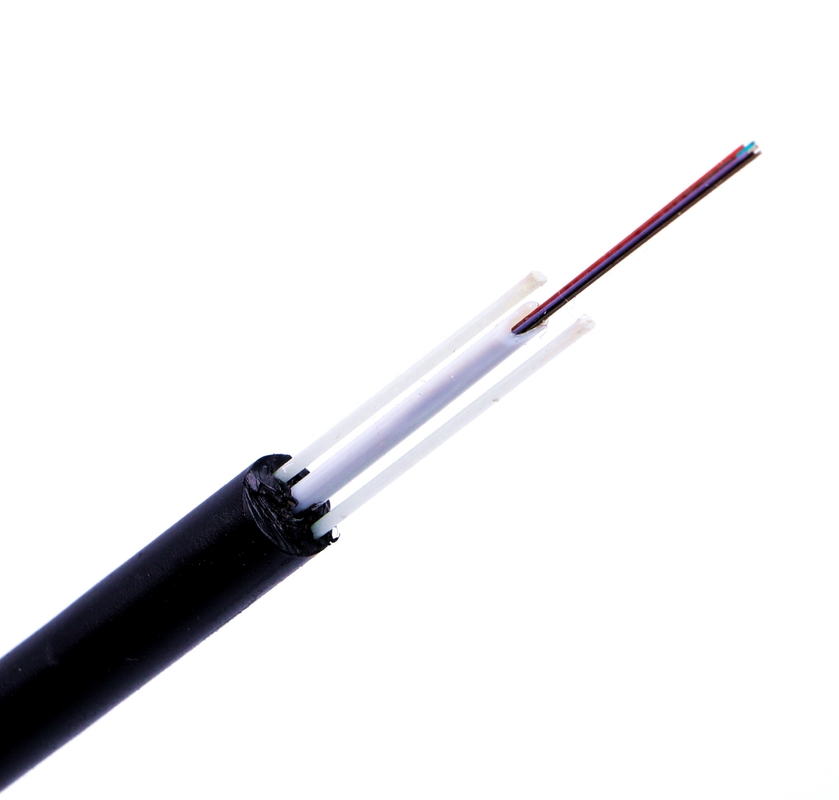

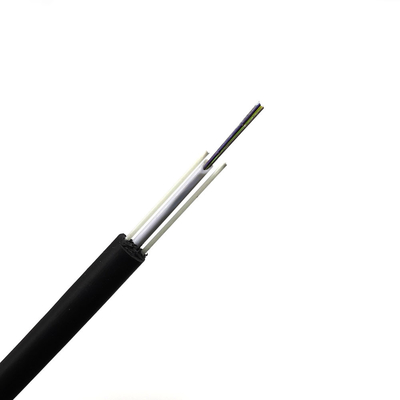

Non-Armored Uni-Tube optical cable with fibers placed in loose buffer tube.The cable core is protected with jelly to prevent water intrusion and migration, and cover with a black polyethylene out jacket. Two embedded FRP or metallic wire provide desire tension.
Features
1. Compact size, use universal cable clamp make installation easily.
2. Uni-tube gel-filled construction for superior fiber protection.
3. Two embedded FRP member to provide high tensile and crush resistance.
4. UV and waterproof design.
5. Designed for use with inexpensive attachment hardware.
6. Self-supporting no messenger needed.
7. Applied for Duct, Aerial FTTx, Access.
Application
GYFXTY:Designed for quick installation and ease in handling, Flat-Span Drop cable serves as the last link for the FTTx networks of today.
The design is Uni-Loose Tube containing up to 24 fibers.
Two embedded FRP member to provide the mechanical properties of the cable.
The finished product, with its compact size, acts as a self-supporting aerial solution for those last mile drops to the customer's home or office.
Technical Data
