| Size: | 455*405*120mm of 48core | Material: | ABS |
|---|---|---|---|
| FTTH Socket connector: | SC FC ST Simplex / LC Duplex | Patch panel Port: | 24/48 /72 /96 |
| Weight: | 8kg of 48core | Color: | White |
| Packing: | 1 pieces/carton | Application: | FTTH |
| ハイライト: | 96 Core Wall Mount Patch Panels,48 core Wall Mount Patch Panels,24 core Wall Mount Patch Panels |
||

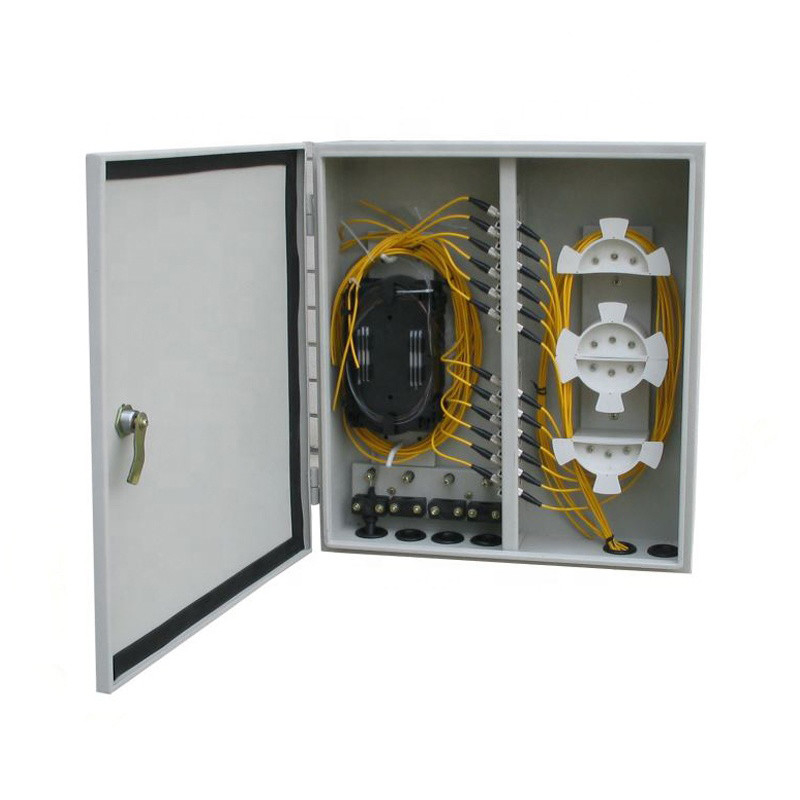

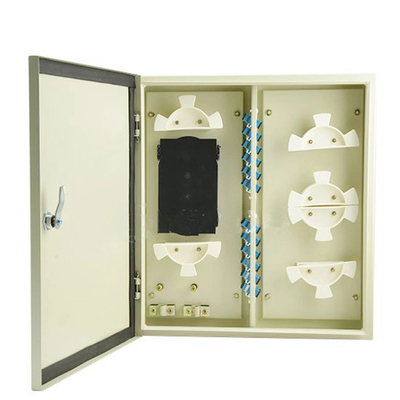

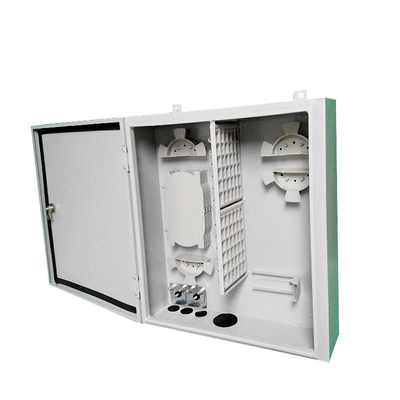

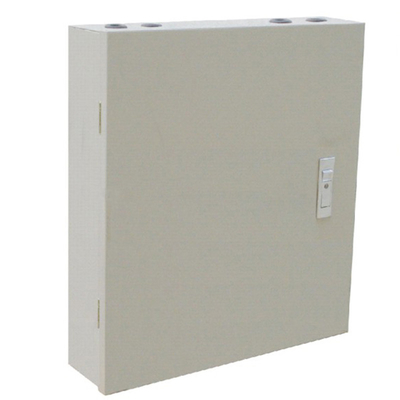

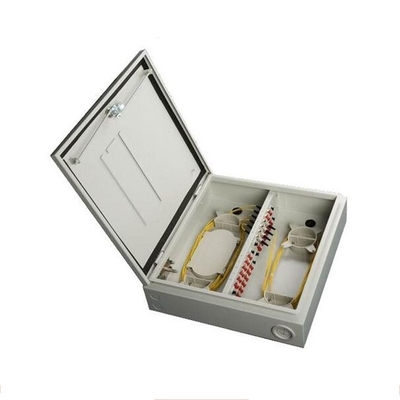

24 48F 72C 96Core Wall Mounted Terminal Box Fiber Optic Patch Panel of SC LC ST FC adapter
Product Description:
Indoor Wall-mount Fiber Optic Distribution Frame can manage both single fiber and ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.
Features:
1. With cold-roll steel box, splicing unit, distribution unit and panel
2. Various panel plate to fit different adapter interface
3. Adapters can be installed: FC, SC, ST, LC
4. Suitable for single fiber and ribbon & bundle fiber cables
5. Special design ensures the excess fiber cords and pigtails in good order
6. No interval and easy for management and operation
7. Available for small capacity communication system,wall mounting,reasonable and compact structure,harmonized with machine room
8. The cabinet is composed of two parts,one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.
9. Provide fusion and storage applicance for optical cables
10. Reliable protection appliance of fixing,stripping and earthing for optical cables.
11. Whole range protected design for fiber lay to ensure the bending radius=40mm
12. Provide various accessores to avoid any unexpected damage to the fiber
Application:
| Protection grade | Above IP 65 |
| Connector Type | SC / LC /FC |
| Material | PC,ABS or Compound;or Steel sheet for OEM size |
| Function | It used in the end termination of buildings and villas to fix and splice with pigtails. |
| Color | Milk white or Light Grey |
| Custom Design | Welcome |
| Sample Lead Time | within 3 days |
Ordering information:
| Type | Dimension(mm) | Max capacity cores | Remark |
| GP(05)A-24 | 455*405*80 | 24 | The case body is made of cold rolled steel sheet,electrostatic spraying.Provide 24-72 adaptors,available for FC,ST,SC,LC . Fit for wall mounting |
| GP(05)A-48 | 455*405*120 | 48 | |
| GP(05)A-72 | 455*405*150 | 72 | |
| GP(05)B-48 | 455*405*120 |
48
|
The case body is made of cold rolled steel sheet,electrostatic spraying.Provide 48-72 adaptors,available for FC,ST,SC,LC . Fit for wall mounting |
| GP(05)B-72 | 455*405*150 | 72 | |
| GP(05)A-24A | 350*350*80 | 24 | The case body is made of cold rolled steel sheet,electrostatic spraying.Provide 12-24 adaptors,available for FC,ST,SC,LC . Fit for wall mounting |
| GP(05)C-FC12 |
350*300*80 |
12 | |
| GP(05)C-SC12 | |||
| GP(05)D-FC24 | 24 | ||
| GP(05)D-SC24 |
Packing information
| Model | Inner carton dimension/ weight | Outside carton dimension/weight | No./carton |
| GP(05)A-24 | 480*430*110 / 7kg | 500*450*490 / 29.5 kg | 4 |
| GP(05)A-48 | 480*430*150 / 8kg | 500*450*490 / 25.5 kg | 3 |
| GP(05)A-72 | 480*430*180 / 9kg | 500*450*390 / 19.5 kg | 2 |
| GP(05)B-48 | 480*430*150 / 8.5kg | 500*450*490 / 27 kg | 3 |
| GP(05)B-72 | 480*430*180 / 9.5kg | 500*450*390 / 20.5 kg | 2 |
| GP(05)A-24A | 385*385*115 / 3.85kg | 405*405*605 / 20.8kg | 5 |
| GP(05)C-FC12 | 385*335*115 / 3.6kg | 405*355*605 / 19.5kg |
