| Size: | 200*215*54mm | Material: | ABS |
|---|---|---|---|
| Applied adaptor: | SC ST FC LC | Port: | 4 / 8 |
| Max capacity: | 8 cores | Color: | White /Black |
| Cable ports: | 2 whaterproof round ports,8 ports cable out | Application: | Wall mount, pole mount or Aerial-hanging |
| ハイライト: | FC LC optical network terminal box,waterproof optical terminal box,8 ports ABS optical terminal box |
||

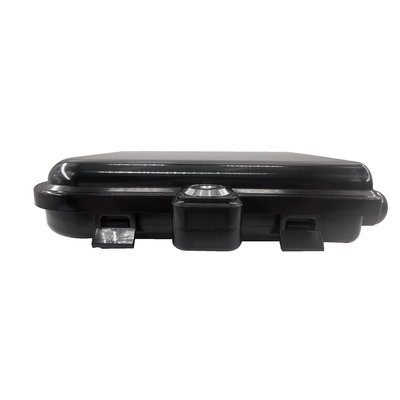

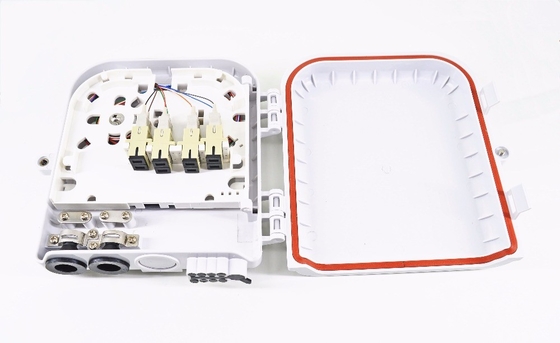

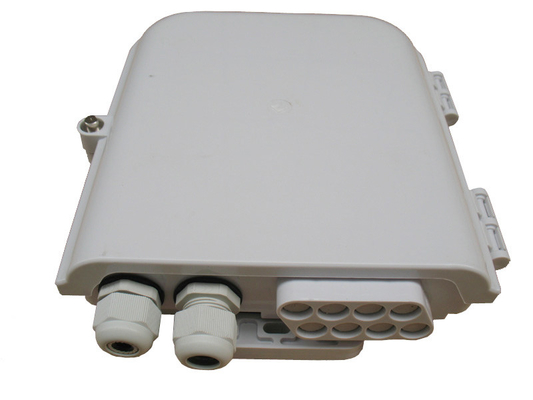

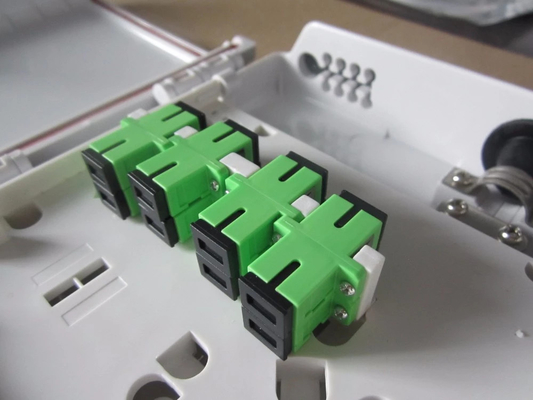

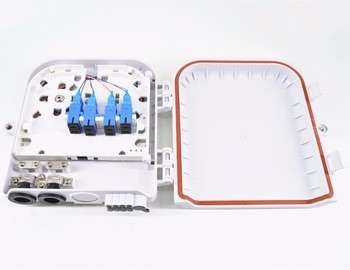

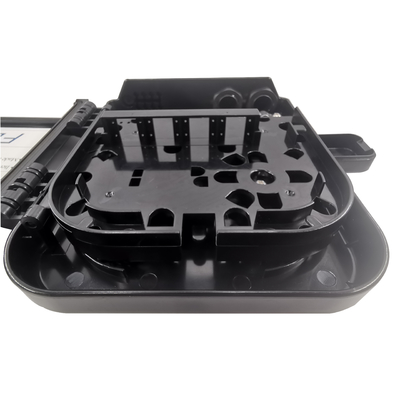

24 Core Mountable SC ST FC LC Optical Network Terminal Box
8 12 16 24 core FTTH BOX Terminal Optical fiber cable distribution box Wall an pole mountable
Description
FTTH terminal box are used in the end termination of residential buildings and villas, to fix and splice with pigtails. Can be installed on the wall. May adapt variety of optical connection styles. Optical fiber can be managed effectively. Fixed and splied with pigtails.It can be istalled on the wall.Can adapt variety of optical connection syles.
Features
Application:
l Wall-mounted Installation
l Pole-mounted Installation
l Aerial-hanging Installation
l Suitable for Huawei pre-connectorized drop cable with reinforced connector
Specification:
| ITEM | FDB0208A | |
| Dimensions | 205*215*55mm | |
| Max Capacity | 8 core | |
| Weight | 0.25kg | |
| Cable input port | 1 round | |
| Cable output capacity | 2 round cable in ,8 round cable out | |
| Protection Level | IP-55 | |
| Atmospheric pressure | 70KPa~106 KPa | |
| Operation Temperature | -40 ~ +85°C | |
|
Main Technical
|
Insertion loss: | ≤0.2dB |
| UPC return loss | ≥60 dB | |
| APC return loss | >1000 times | |
